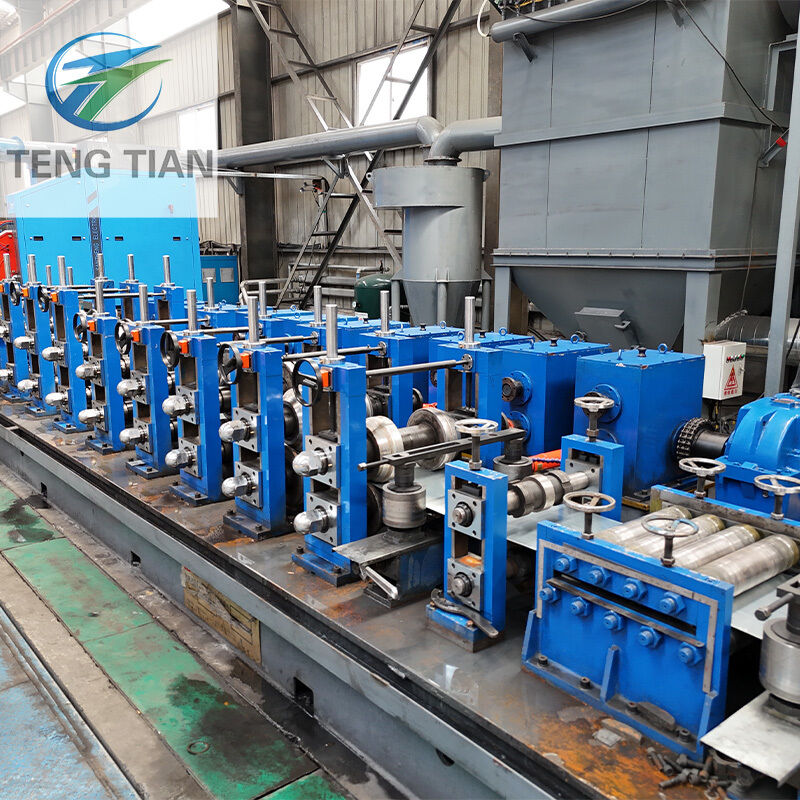

High Frequency Welded Pipe Mill for carbon Steel 114-273mm
Product Attributes
| Forming Method |
FFX Forming Technology & Directly Forming |
| Running Speed |
Max. 40m/min |
| Pipe Shape |
Round, Square & Rectangular |
| Pipe Diameter |
114 - 273mm |
| Max. Thickness for Round Pipe |
2.0 - 10.0mm |
| Welding Type |
High Frequency Welding |
| Cutting Saw |
Milling Saw |
Product Description
The ERW273 high precision full automatic ERW tube mill is designed for manufacturing welded steel pipes with diameters from Φ114mm to Φ273mm and wall thicknesses from 2.0mm to 10.0mm, including square pipes from 60×60mm to 200×200mm.
ERW Tube Mill Process
- Uncoils and flattens steel coils into strips
- Forms strips into round pipe shape using precision rollers
- Welds tubes using high frequency solid state welder
- Sizes tubes to precise dimensions
- Cuts to specified lengths (6-12m) with ±3mm accuracy
Key Advantages
- High precision manufacturing with diameter and roundness error ≤0.08
- Incorporates Japanese technology for superior accuracy
- Worm gear adjustment system for precise control
- 3D adjustable scraping system with ±20° rotation capability
- Turkish head push square forming for stable, uniform R angles
- Nylon damping blocks reduce impact on shafts and bearings
Production Process
- Scroll up
- Uncoil
- Flattening
- End Shear & Butt Welding
- Accumulator
- Forming
- High-frequency induction welding
- Removing external burr
- Cooling
- Sizing
- Cutting
- Checking & Collecting
- Accessing Warehouse
Technical Specifications
Raw Material
| Material Application |
Hot or cold rolled steel strips, galvanized steel strips |
| Material Grade |
Low-carbon steel, low alloy steel: δs≤345Mpa |
| ID of Steel Strips |
Φ508-Φ610mm |
| OD of Steel Strips |
Φ800-Φ2000mm |
| Coiler Weight |
Max. 3000kg |
Production Range
| Pipe Type |
Size Range |
Thickness |
| Round Pipe |
114 - 273mm |
2.0-10.0mm |
| Square Pipe |
60×60 - 200×200mm |
2.0-10.0mm |
| Rectangular Pipe |
50×70 - 100×300mm |
2.0-10.0mm |
Additional Specifications
- H.F. Welder: GGP800Kw Solid State High Frequency Welder
- Line Speed: Max. 40m/min
- Tube Length: 6-12m
- Cutting Accuracy: ±3mm
- Electric Installed Capacity: approx. 1000KW
- Size of Whole Line: about 100×12m
As a CE & ISO9001:2008 certified manufacturer, our high-quality pipe making machines are exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
